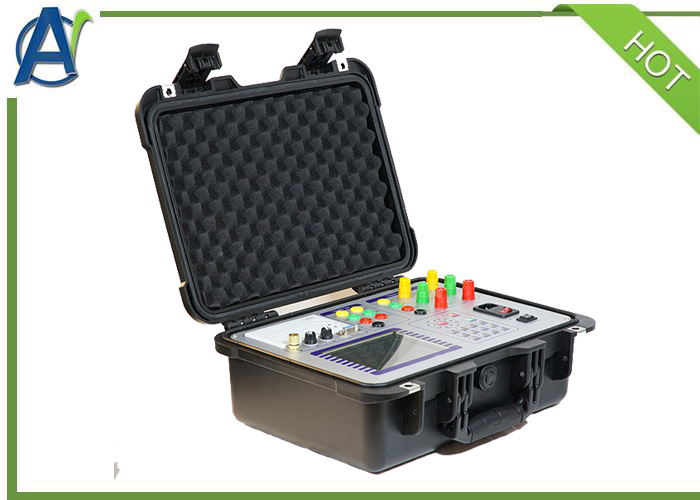

Transformer Load, Load Loss, No Load Loss Testing Equipment with Printer

  • 1
  • 2
  • 3

Brand Name : AI

Model Number : KFZ

Certification : ISO9001

Place of Origin : China

MOQ : 1 set Transformer No Load Loss Testing Equipment

Price : Negotiable

Payment Terms : Western Union, T/T, L/C

Supply Ability : 100 sets each month

Delivery Time : 15 days

Packaging Details : Transformer No Load Loss Testing Equipment Packed in veneer case

Function : Transformer Load Tester, Load Loss, No Load Loss Testing Equipment

Test Parameters : Transformer capacity, no-load current, no-load loss, short circuit voltage, short circuit (load) loss

Capacity test range : 30kVA～3150kVA

Size : 400×300×220mm

Weight : 8kg (Excluding accessories)

Power Supply : 220V, 50Hz

Warranty : 1 year

Color : Black

Contact Now

Introduction:

Transformer No Load Loss Testing Equipment is specializing in basic electricity, power users adverse tax evasion problems and developed a new instrument to increase design.

High precision instrument for measuring characteristic parameters of transformer capacity, no-load and load.

Transformer No Load Loss Testing Equipment is a multi-function measuring instrument, which is equivalent to the usual two kinds of test instruments: the transformer capacity tester + transformer characteristic parameter tester.

The utility model can precisely measure a series of power frequency parameters of a plurality of transformers, such as the capacity, the type, the no-load current, the no-load loss, the short circuit (load) loss and the impedance voltage.





Specifications of Transformer No Load Loss Testing Equipment:

1 Test Parameters

Transformer capacity, no-load current, no-load loss,

short circuit voltage, short circuit (load) loss
2 Working power Input voltage 185Vac～250Vac
Allowable input voltage 85Vac～264Vac
Frequency 50/60Hz
Allowable frequency 45Hz～65Hz
Input power 40VA
Joint Standard AC socket 60320
3 AC voltage Range 10～650V
Resolution 0.001V
Accuracy 0.2%±0.001V
4 AC Current Range 0.5～60A
Resolution 0.001A
Accuracy 0.2%±0.001A
5 Frequency Range 45Hz～65Hz
Resolution 0.001Hz
Accuracy 0.2%±0.001Hz
6 Power Range 0～39kW
Resolution 0.001kW
Accuracy

＜±0.5%(CosΦ＞0.1)

±1.0%(0.02＜CosΦ＜0.1)
7 Capacity test range 10kV Dry type transformer 30kVA～3150kVA
10kV Oil immersed transformer 30kVA～3150kVA
35kV Oil immersed transformer 50kVA～31500kVA
20kV Dry type transformer 50kVA～2500kVA
35kV Dry type transformer 50kVA～2000kVA
8 Environment Operating temperature -10℃～+50℃
Storage temperature -25℃～+70℃
Relative humidity 5%～95%
9 Size 400×300×220mm3
10 Weight ≈8kg (Excluding accessories)
